High-side Switch: Infineon BTS5045-1EJA Overview Analysis Report

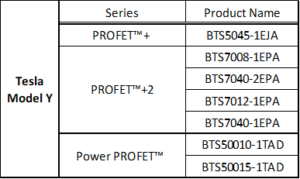

		High-side Switch with Tesla Model Y body ECU
Package	Package (inside)

Report summary

Mechanical relays and MOSFET have conventionally been adopted for on/off control of electronic circuits, but these high-side switches are increasingly adopted due to their superior miniaturization, longevity and reliability, and the market is greatly expanding. Infineon high-side switch (BTS5045-1EJA) built-in diagnostic functions and protection functions. Tesla Model Y’s integrated body ECU is equipped with a number ofInfineon 3-series high-side switches from web information.
This report includes die image (top metal and gate layer), cross section (logic area) and process node identification. This report includes die image (top metal and gate layer), cross section (logic area) and process node identification.

Product specifications and feature

• BTS5045-1EJAPROFETTM+ series (2010)
• Vs: 5V-28V, RDS(ON): 90mohm, Nominal load current: 4A
• High-side switch with integrated diagnostic and protection functions
• N-channel DMOS with charge-pump
• Ultra-low power DMOS leakage current in off-state

Report Contents(16 pages)

• Package image and X-ray image
• Die image (top metal and gate layer)and Die size
• Logic area cross sectionandprocess node identification

Report price

Delivered one week after order placement
Please contact us for report pricing.
