UGREEN quick charger Nexode Pro(65W) teardown report
 |
Full-length:55mm |
 |
||

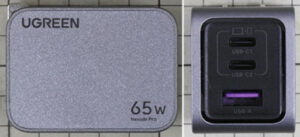

| Nexode Pro (65W) | Internal PCB | |||
Overview
UGREEN, a Chinese company, has released a charger Nexode Pro(65W) that supports a variety of charging protocols such as USB PD/QC and can charge laptop PC and smart phones at an optimal rate on February 7, 2024. This can charge MacBook Air 13 from 0% to 70% in 60 minutes while maintaining high power even though it is miniaturized to about 85% by volume from the previous model (Nexode PD(65W)).
LTEC released a report including measurement of switching frequency/ripple voltage, observation of heat generation during operation, and teardown.
Product features
- Conforms to USB Type C Power Delivery standards and outputs at full 65W
- 2 USB Type-C ports, 1 USB Type-A port
- Power Density: 0.91W/cm3
- Weight: 111g
Report Contents (13 pages)
- Switching frequency/ripple voltage measurement
- Operating chassis surface temperature, temperature distribution
- Teardown, mounting position of main parts, parts list and block diagram (estimation)
Report price
Delivered one week after order placement
Please contact us for report pricing.
